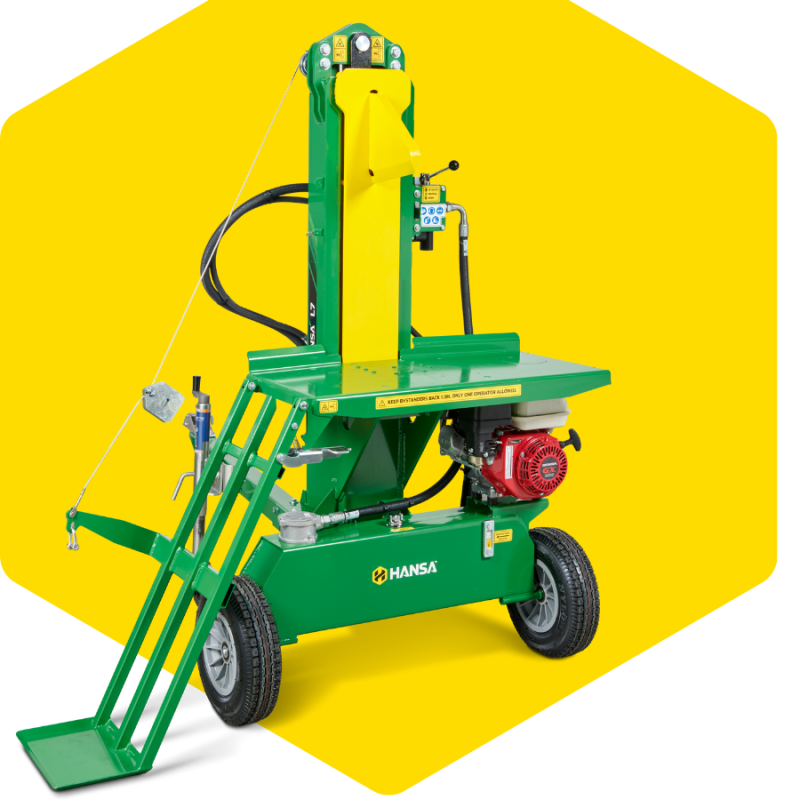

Hansa - L7 Log Splitter

Hansa - L7 Log Splitter

The Hansa L7 Log Splitter is built for the serious lifestyle user who demands commercial-level performance.

Designed with storage in mind, the compact footprint, folding drawbar, and under-table engine minimise space requirements.

With 19 tonnes of splitting force and an 10-second cycle time delivered through a 4” diameter cylinder, it powers through even the toughest hardwood with ease. The large splitting table and integrated 150 kg-rated loglift make processing big rounds simple and safe, handling logs up to 450 mm long.

Engineered and manufactured in New Zealand to last a lifetime, using only the highest quality components and powered by the 6.5 HP Honda GX200 the L7 delivers in the toughest of conditions.

Made of steel and finished with a durable powdercoated finish with zinc shield rust protection delivers longevity.

Designed with storage in mind, the compact footprint, folding drawbar, and under-table engine minimise space requirements. Its unique low-profile beam design keeps the overall height down – allowing it to fit through a standard garage door.

Refueling is quick and convenient thanks to an access port built into the table. And for all-day use in the sun, an integrated umbrella holder adds a touch of operator comfort (umbrella not included).

Specifications:

• Engine: Honda GX200
• Max Power: 6.5 HP
• Starting System: Recoil
• Fuel Type: Petrol
• Fuel Tank Size: 3.1L
• Hydraulic Tank Size: 30L
• Hydraulic Pressure: 207 bar / 3000psi
• Cylinder Diameter: 4"
• Splitting Force: 19 ton
• Cycle Time: 9 Seconds
• Max Log Length: 450mm
• Log Lift: 150kg
• Table Dims (l x w x h): 920 x 410 x 900mm
• Wheels: 400mm pneumatic
• Machine Dims (l x w x h): 1900 x 1600 x 1870mm
• Machine Weight: 372kg
