Description

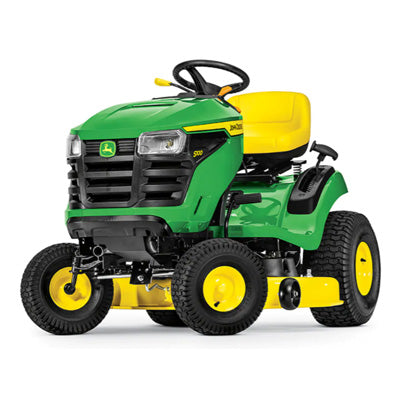

John Deere S100 Ride On Mower
Price includes machine assembly and dealer delivery charges.
Specifications
- Engine power: 17.5 hp 13 kW
- Oil change: No-tools oil drain with replaceable filter
- Transaxle type: TLT200 hydrostatic, two-wheel drive
- Transaxle control: Side-by-side pedals
- Rear tires: 20x8-8
- Lift system type: Spring-assisted hand-grip lever
- Cutting width: Edge™ mower deck, 42 in. 107 cm
- Displacement: 30.5 cu in. 500 cc
- Type: Overhead valve, full-pressure lube, oil filter
- Cylinders: One
- Governor: Mechanical
- Choke/speed control: Single lever with spring-return on choke
- Cooling method: Air
- Air cleaner: Cartridge
- Oil change: No-tools oil drain with replaceable filter
Features
Powerful engine features full-pressure lubrication for long life
- 13-kW (17.5-hp) engine
- Engine oil filter and fuel filter
- A 13-kW (17.5-hp), single-cylinder engine has plenty of power and torque to handle tough mowing, mulching, and bagging:
- Electronic ignition for fast starts
- Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
- Cast-iron cylinder liner for long engine life
- Overhead valves for excellent power and fuel economy
- Anti-vibration system
- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life, and extending the time between oil changes
- More effective when operating the tractor on an incline
- Large fuel filter for trouble-free operation
- No-tools oil drain valve
- No-tools oil drain valve
- The no-tools oil drain valve is easy to access when changing engine oil.
- Convenient fuel filler opening
- The capacity is 9.1 L (2.4 U.S. gal.).
- The fuel filler opening is conveniently located under the seat.
- Filling the tank without spilling is easy.
- A tethered fuel tank cap is more convenient.
- The sealed fuel cap helps keep vapors inside the tank.
