Description

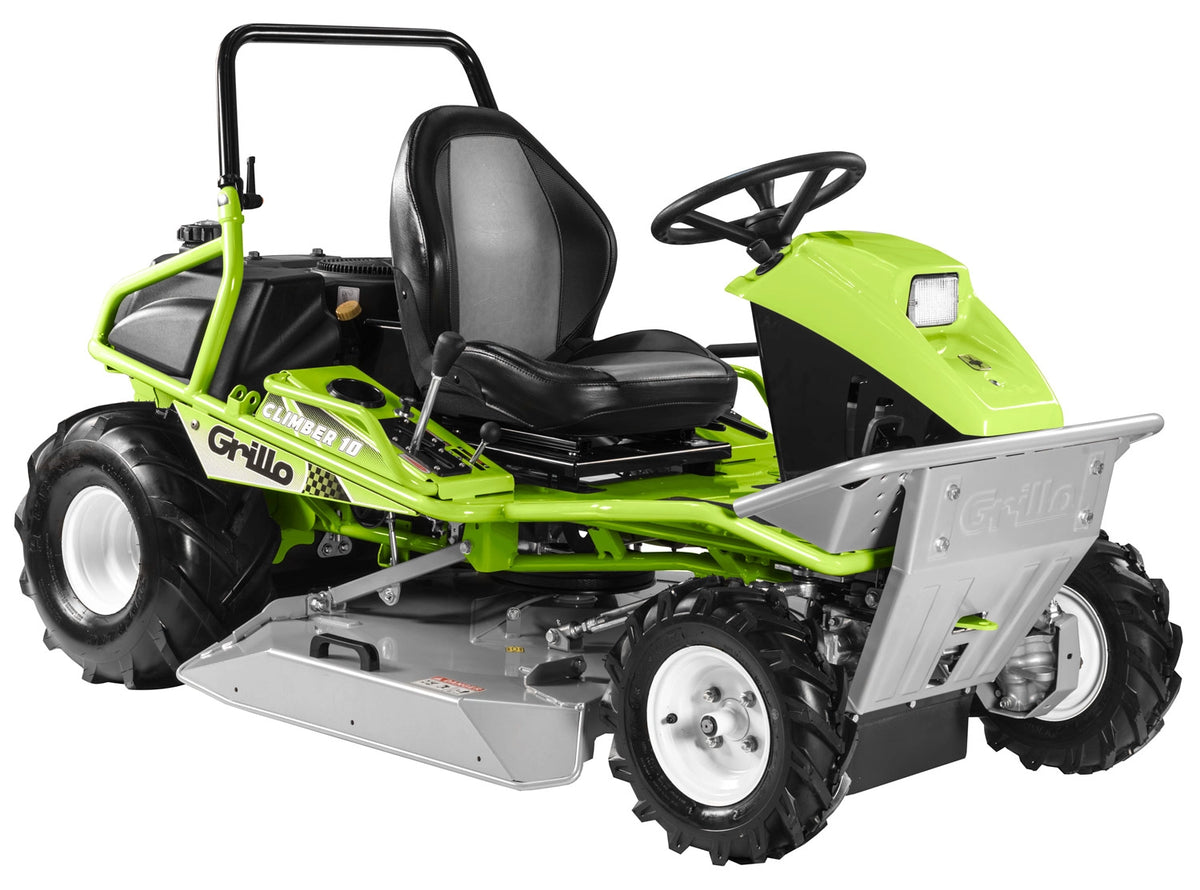

Grillo Climber 10 AWD 23 is a professional brush cutter designed to tackle challenging slopes and terrain with poor grip. Its compact size and permanent 4-wheel drive, combined with hydrostatic transmission and rear differential lock, guarantee exceptional traction and stability even in difficult conditions.
The 708 cc, 22 HP Loncin twin-cylinder gasoline engine ensures constant power and reliability, while the maximum speed of 9 km/h allows for quick transfers. The single-blade cutting deck with floating ends measures 93 cm, with a height adjustable from 3.5 to 13.5 cm in infinite positions, working effortlessly on tall grass and shrubs up to 2.5 cm in diameter, while keeping the deck parallel to the ground at all times. The cutting height is adjusted using a lever that is always smooth and fluid in every movement. The deck locks automatically when the lever is released. The blades are engaged using an electric button located near the steering wheel. The electromagnetic clutch is equipped with a built-in blade brake.
The Climber 10 is equipped with large steel hydraulic pipes connecting the two drive axles. Combined with a cooling fan positioned on the rear axle, they help keep the hydrostatic oil operating temperature low, ensuring maximum transmission efficiency even under intense working conditions.
The robust structure, reversible special steel blades, and shock protection for the blade shaft guarantee safety and long life. The large tractor wheels, with anti-puncture treatment on the front wheels, ensure grip on low-adhesion terrain.
The adjustable, spring-loaded comfort seat, combined with ergonomic controls and a roll bar that can be lowered without tools, makes work more pleasant and safer even on uneven ground.
The Climber 10 AWD 23 is the ideal choice for agricultural and professional use when power, stability, and reliability are required. Furthermore, it is designed and built to last and maintain its value for many years.
SPECIFICATIONS
Engine: Loncin LC2P77F
Start: 12 Volt Electric/Key Start
Fuel Type: Unleaded
708 cc, 2 Cylinders
22.0 HP/16.0 KW
Air cooled
Fuel tank capacity: 13 L
Transmission: Hydrostatic
Traction: 4WD
PTO: Electromagnetic clutch with flat belt
Diff locking: Diff locking by pedal
Cutter deck: Single-blade rear discharge deck
Cutting deck width: 103 cm
Cutting width: 93 cm
Cutting height: 3.5 to 13.5 cm, with continuous adjustment
Blade speed: 83 m/sec.
Front tyres: 4.00–8 TRACTOR and puncture-proof treated
Rear tyres: 20 x 10.00-8 TRACTOR
Steering: Steering wheel, with forward and reverse lever
Speed: 0 to 9 km/h, reverse from 0 to 8 km/h
Inner turning radius: 76 cm
Seat: Comfort seat, cushioned and adjustable. With roll bar
Brakes: Parking brake on rear wheels with lever control
Mowing capacity per hour: 7200 m²
Length 206 cm
Width 103 cm
Height 118,5 cm
Weight 350 kg
