Description

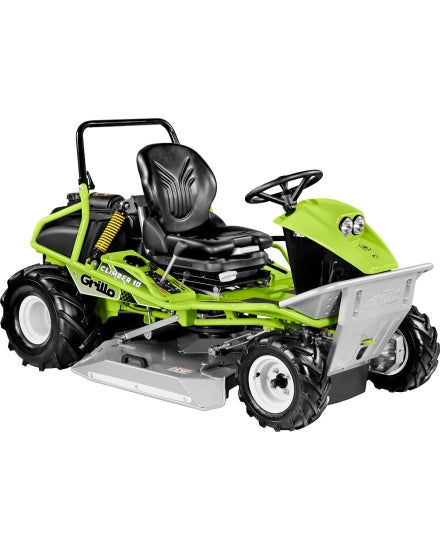

GRILLO 10.27 AWD Climber Mower
4-wheel-drive to go beyond limits
The Grillo Climber 10 AWD 27 is a truly unique hydrostatic brush-cutter. The permanent 4WD system combined with the 27 HP powerful engine (22 HP net power) offer brilliant performances on severe slopes and low-adherence grounds. Remarkably efficient on high grass and up to 2.5 cm diameter shrubs, this machine is ideal for both agricultural and professional use. Its compact dimension has been designed to boost its performance on slopes and the Kanzaki hydrostatic transmission with differential lock on the rear wheels allow the operator to work with maximum safety, reliability and unmatched stability under any working condition.
Thanks to the four-wheel drive the operator can stop on slopes just by using the forward lever and can engage reverse in total safety with no wheel skidding.
The hydrostatic motors on the front axle are protected by an anti-shock steel plate.
The Climber 10 is equipped with major stainless steel hydraulic pipes connecting the two hydraulic axles. Together with a cooling fan placed on the rear axle, they keep the hydraulic oil working pressure low to guarantee high performances even under the most demanding working conditions.
Tractor wheels ensure adherence on irregular grounds. In addition front wheels are puncture-proof.
Specifications
- Engine: Briggs & Stratton Series 8290 CXi Commercial, 724 cc, 2 Cylinders, 22.0 HP, 16.2 KW
- Start: electric, with 12 V battery
- Fuel: Unleaded
- Cooling: Air cooled
- Filter: Dry air filter with interchangeable filter cartridges
- Fuel tank capacity: 13 L
- Transmission: Hydrostatic
- Traction: 4WD
- PTO: Electromagnetic clutch with flat belt
- Differential locking: Differencial lock by pedal action
- Cutter deck: Single-blade rear discharge deck
- Cutting configuration: 1 rotating blade
- Cutting deck width: 108 cm
- Cutting width: 98 cm
- Cutting height: From 3.5 to 13.5 cm, with continuous adjustment
- Peripheral blade: 87 m/1"
- Front tyres: 16x6.50-8 tractor. With anti-puncture treatment as standard feature.
- Rear tyres: 20×10.00-8 TRACTOR
- Steering system: Steering wheel, with forward and reverse lever
- Speed: From 0 to 9 km/h, reverse from 0 to 8 km/h
- Inner turning radius: 76 cm
- Seat: Comfort seat with suspension adjustable according to the operator's weight. Spring-loaded seat support with roll bar
- Parking brake: On the rear wheels with lever engagement.
- Mowing capacity per hour (indicative): 7500 m²/h
- Length: 206 cm
- Width: 108 cm
- Height: 11855 cm
- Weight: 383kg
