Description

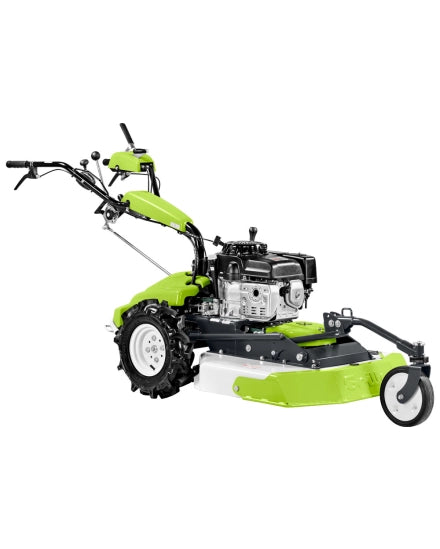

GRILLO CL 75 Grass Cutter
A hydrostatic grass cutter for all situations
The CL 75 is a highly manoeuvrable grass cutter, cutting high grass and other vegetation quickly and efficiently. Uneven ground, steep slopes and different types of obstacles do not present a problem for the CL 75. The perfect weight distribution and the special tractor tyres give great adherence to the ground under all conditions. The cutter deck has a single blade with swinging tips, producing a very good finish even when mowing grass, making it an ideal machine for grass care both for the professional or domestic user.

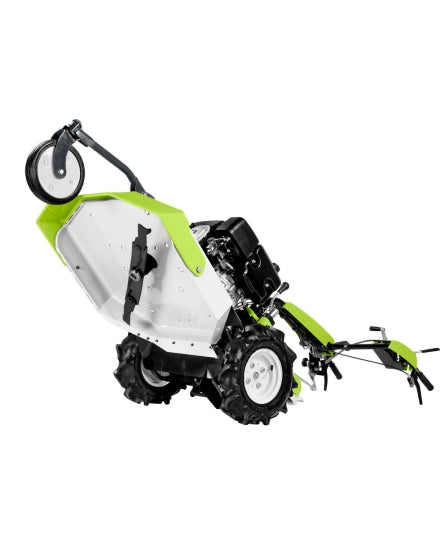

The deck of the CL 75 is mounted at the front therefore allowing the operator to cut under low positioned branches or bushes. High grass, coppices and bushes are guided into the cutter deck and cut by the blade with (shock-resistant) swinging tips which are made from special steel, the cut material is then discharged out of the rear. If necessary the cutter deck’s front aperture will lift up automatically when entering high vegetation without crushing in down, which considerably increases the efficiency of the machine.
Specifications
- Engine: Honda GXV390 OHV, 389 cc, 1 Cylinder, 10.2 HP, 7.6 KW
- Start: recoil starter
- Fuel: Unleaded
- Cooling: Air cooled
- Filter: Dry air filter with interchangeable filter cartridges
- Fuel tank capacity: 2,1 L
- Transmission: Hydrostatic
- Traction: 2WD
- Differential locking: Manual engaged differential lock
- Cutter deck: Single-blade plate with floating ends, rear discharge, and front tilting opening. Belt drive
- Cutting configuration: 1 rotating blade with 2 shockproof floating blades
- Cutting deck width: 85 cm
- Cutting width: 75 cm
- Cutting height: From 5 to 15 cm continuously and rapidly adjustable by means of a crank lever
- Peripheral blade speed: 74 m/s
- Drive wheels: Tractor wheels with 4 plies 4.00-8
- Front wheel: 8x3.00-4 puncture-proof wheels
- Speed: From 0 to 6 km/h, reverse gear from 0 to 3,5 km/h
- Parking brake: By lever
- Handlebar: By means of a rapid height and lateral adjustment of the handlebar
- Mowing capacity per hour (indicative): 2500 m²/h
- Length: 215 cm
- Width: 84,5 cm
- Height: 105 cm
- Weight: 140 kg
