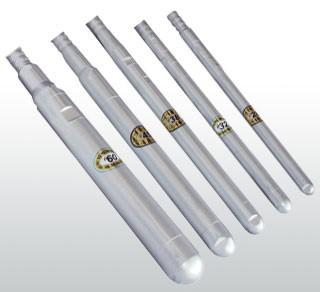

VIB28/VIB38/VIB45/VIB60 Flex Shaft Concrete Vibrators
Hoppt concrete vibrators with flexible shafts are built with an improved pendulum design. This series of vibrators consist of 4 sizes, which are the VIB28, VIB38, VIB45 and the VIB60. The concrete vibrators are suitable for use in all types of concrete and a wide variety of construction sites from small foundations to very large projects.
FEATURES:
- Three-claw Coupling
- Induction hardened magnesium steel alloy
- Reinforced steel hose with 6 layers of special spun steel
- High vibrating power
- Long working life
- Wear resistance and reliability
- Easy operations and compatibility
- Easy maintenance
SPECIFICATIONS:
- Head Dimension – Dia x L (mm): 28x460
- Flex Shaft Length – (m): 6
- Operating Weight - (kg): 18
- Shaft Revolution: 3,000
- Vibrating Frequency – Hz (vpm): 163 – 208 (9,800 – 12,500)
