Description

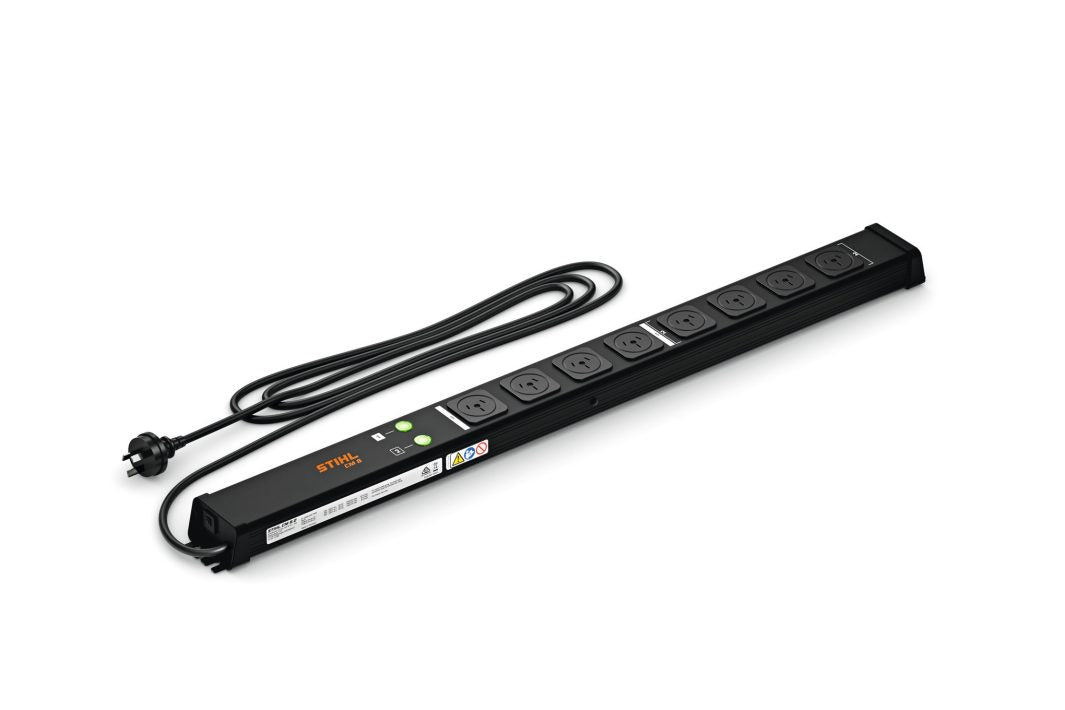

CM 8 Charging Management System: Smart Multi-Battery Charging for Professionals
The STIHL CM 8 Charging Management is a practical charging solution which is particularly suitable for pros in horticulture and landscaping, municipal operations and forestry operations. It makes it possible to connect up to 8 chargers together and for up to 32 batteries to be charged on a single fuse in the workshop. The STIHL CM 8 can also be used in a vehicle on the road.
The STIHL CM 8 Charging Management has 8 sockets divided into two groups of 4. It charges batteries according to a simple principle: when all the batteries connected to Group 1 sockets are fully charged, its starts charging the batteries connected to Group 2 sockets. This facilitates ideal utilisation of charging capacity in the workshop or vehicle.
The optimised control prevents the fuse from being overloaded and ensures reliable, complete charging of the connected batteries, for example overnight. Important: No other consumers can be connected and operated on the same fuse.
It is easy to use and install: for fixed use in the workshop, you can conveniently mount the STIHL CM 8 Charging Management on a suitable wall, shelf or cabinet and connect it to an individually fused socket, for example. Inspection by an electrician is not required.
The STIHL CM 8 Charging Management is suitable for charging batteries from the STIHL AS system, STIHL AK system and STIHL AP system with the following STIHL chargers:
- ALS 31 (item no. EA174302505), up to 2 A charging current, weight 0.5 kg
- AL 5 (item no. EA034305705), up to 4 A charging current, weight 0.5 kg
- AL 5-2 (item no. EA114305705), up to 4 A charging current, weight 0.8 kg
- AL 101 (item no. 48504302525), charging current up to 1.7 A, weight 0.7 kg
- AL 301 (item no. EA094305505), up to 6.5 A charging current, weight 1.2 kg
- AL 301-4 (item no. EA044305505), up to 6.5 A charging current, weight 4.4 kg
- AL 501 (item no. EA044305505), up to 12 A charging current, weight 1.3 kg
Note: Please note that for optimal operation of the STIHL CM 8 Charging Management, no other power consumers may be connected to the same fuse and used at the same time.
Technical data
- Rated voltage: 230 V
- Rated current: 10 A
- Power consumption: 2300 W
- Device weight: 1.4 kg
- Frequency: 50 Hz
- Protection class: I
- Number of slots: 8
- House fuse: 10 A
- Device width: 74 mm
- Device height: 46 mm
- Device length: 866 mm
